PANELLING AND BOOKCASES - DETAILS 12

Dev2748CornerReturnDtail500

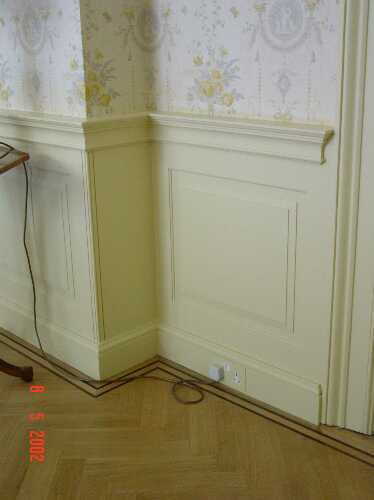

Dado - Chair rail - height, room panelling showing the fielded central panels, the surrounding panel bead, the deep dado rail and skirting returned upon themselves at the door architrave (not sufficient depth), the traditional bead on the corner, the higher skirting (dado rail height permitted) to take power points after our work and the hard wood floor boarder following our panelling which was laid after our installation.

Dev2748CornerDtail500

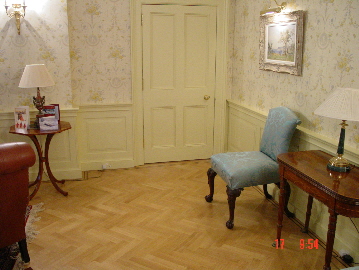

Dev2748EntA270
Div2839PanCornPil3Dig500

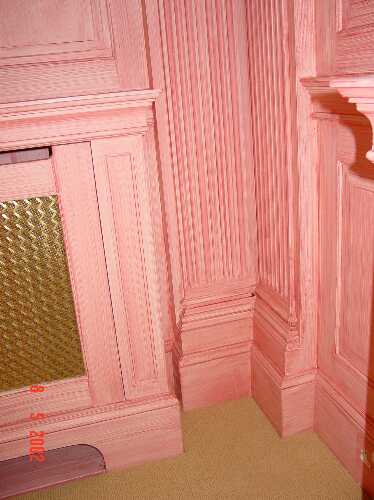

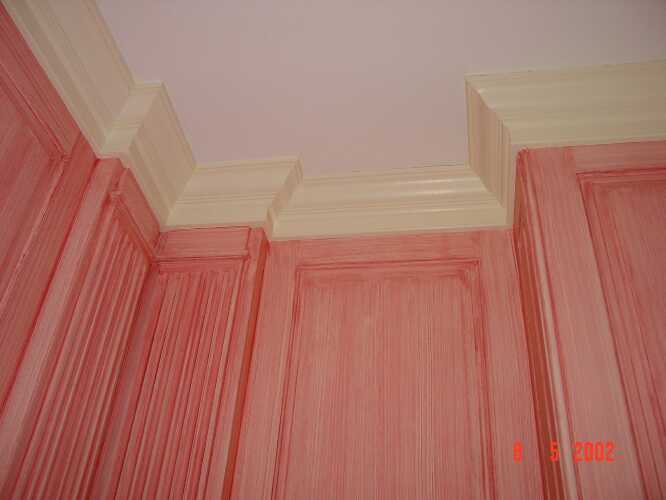

Panelling around the entire room with floor to ceiling fluted pilasters with pilaster head and bases standing on full base pediments over the skirting, recessed panels with fielded central panels and internal bead around the whole room, with full depth and fully moulded dado or chair rail between the upper and lower panels to include radiator covers incorporating rebated and beaded lower pilasters and removable and vented face covers, the whole with cornice designed and sympathetic to the many returns over the pilasters, in the corners and at the chimney breasts.

Added cupboar d

Div2839PanCornPil2Dig500
PanelCupbMendotDtail1a500

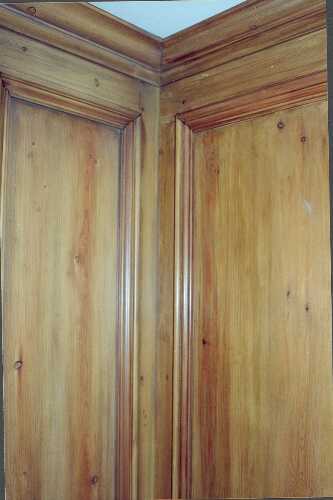

Original panel

Added cupboa rd

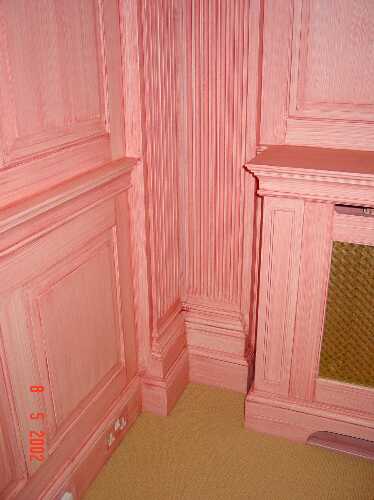

Div2839PanRadCornerDig500
PanelCupbMendotDtail2a500

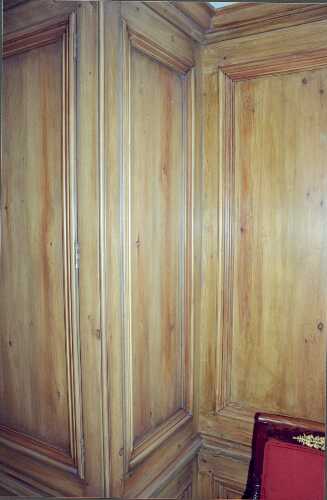

Original panel behind the chair

The original panelling was matched in my design to be made in mdf and softwood to replicate the bolection panel molding, the soft wood cornice, the dado rail and the skirting.  The resulting central cupboard was painted internally and externally to match the existing old pine panels. The chair is resting against the original panels the “returned” cupboard with the fittings inside is our design to harmonize and, as best we could, copy the existing.

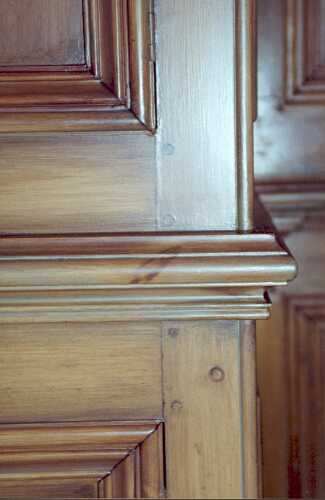

PanelCupbMendotDtail5a500
PanelCupbMendotDtail3a500

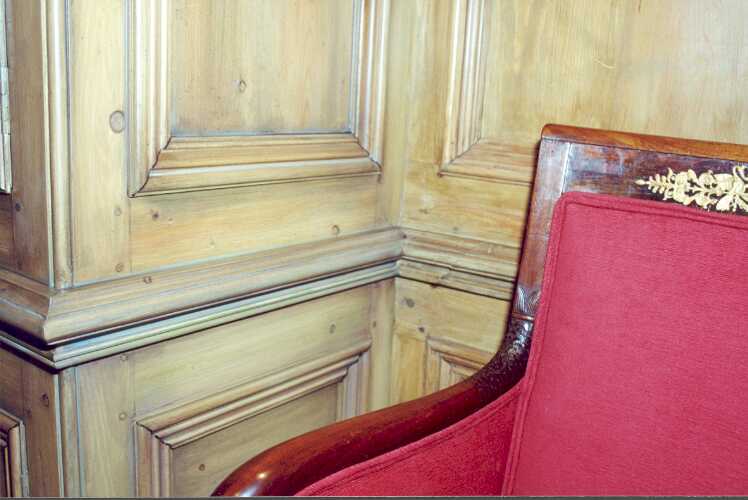

Added cupboard and dado which I designed with original panels behind.

My designed cupboard, dado and bolection panel moulding  to match existing behind the chair.

Original panel, dado and bolection moulding behind the chair

PanelCupbMendotDtail4a500

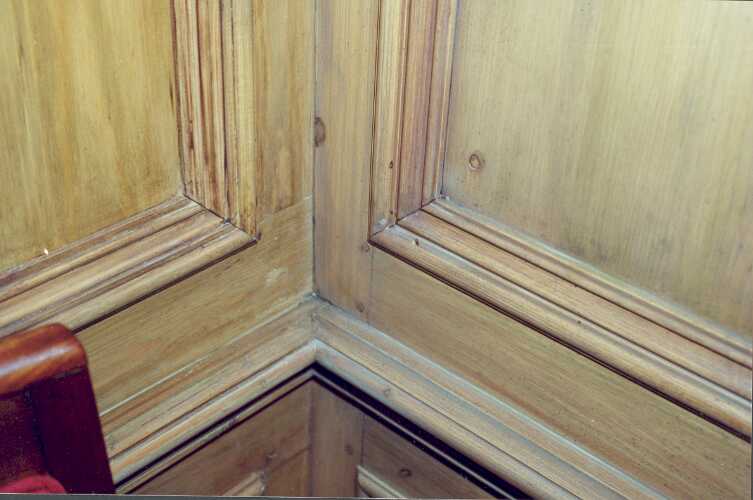

Original panel, dado and bolection moulding behind the chair

My designed added cupboard, dado and bolection panel moulding.

PanelCupbMendotDtail6a500
PanelCupbMendotDtail7a500
crun 100p107

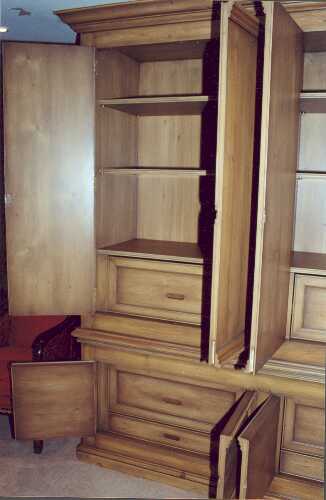

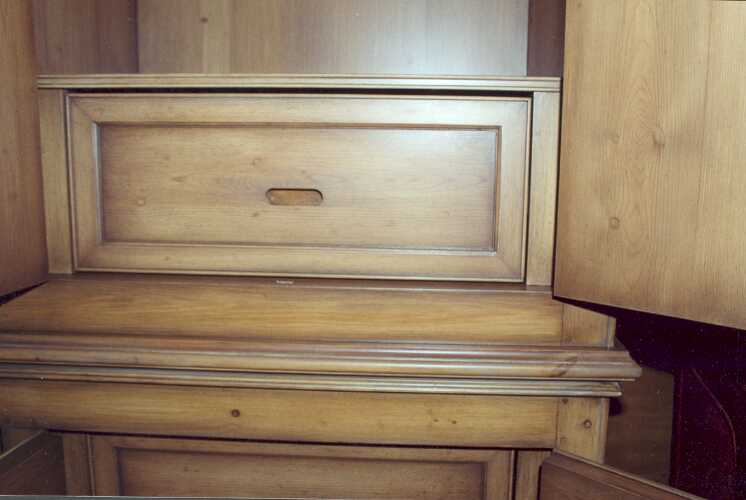

My design for the internal arrangements for the fitting out the inside of the cupboard also showing my designed replication of the dado rail.
